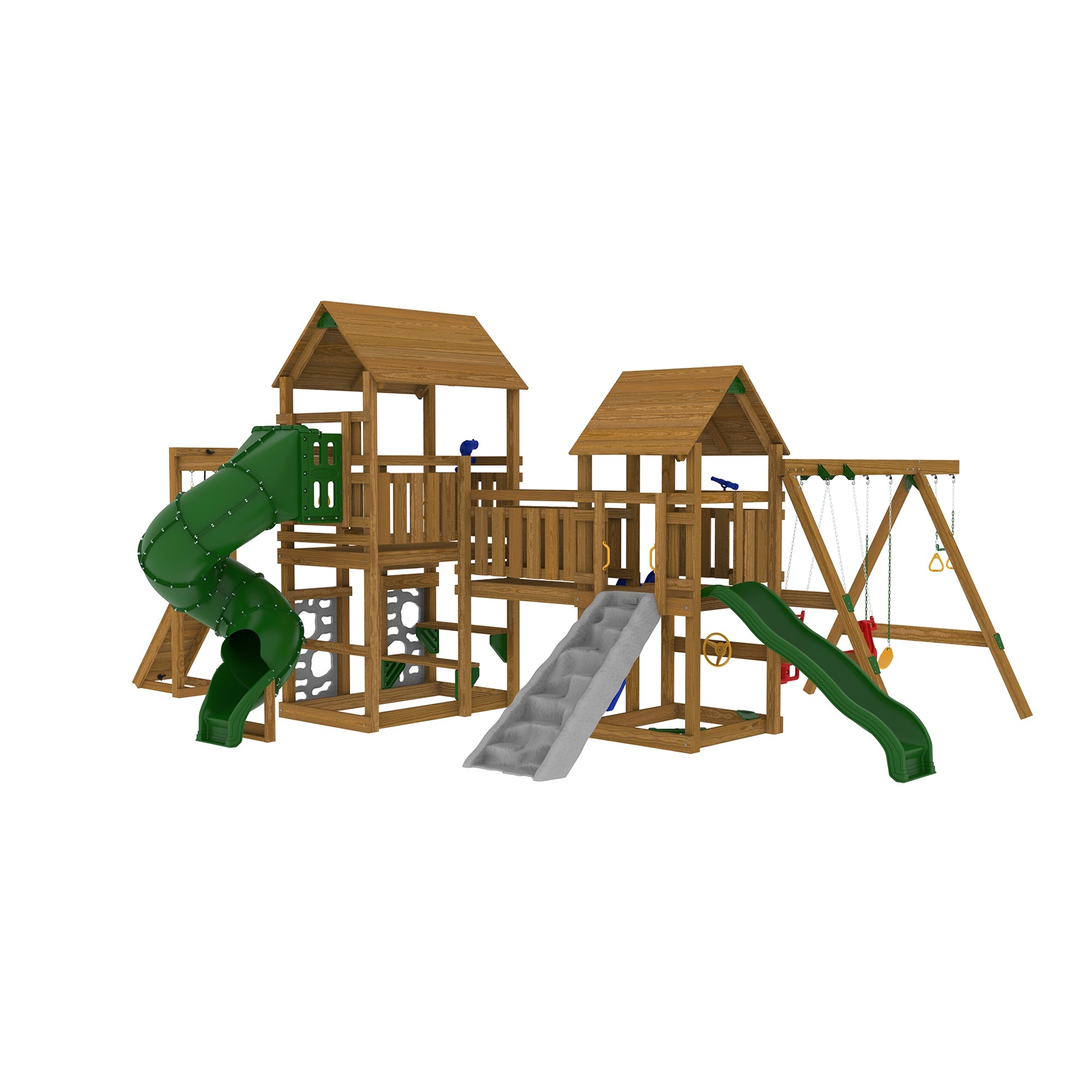

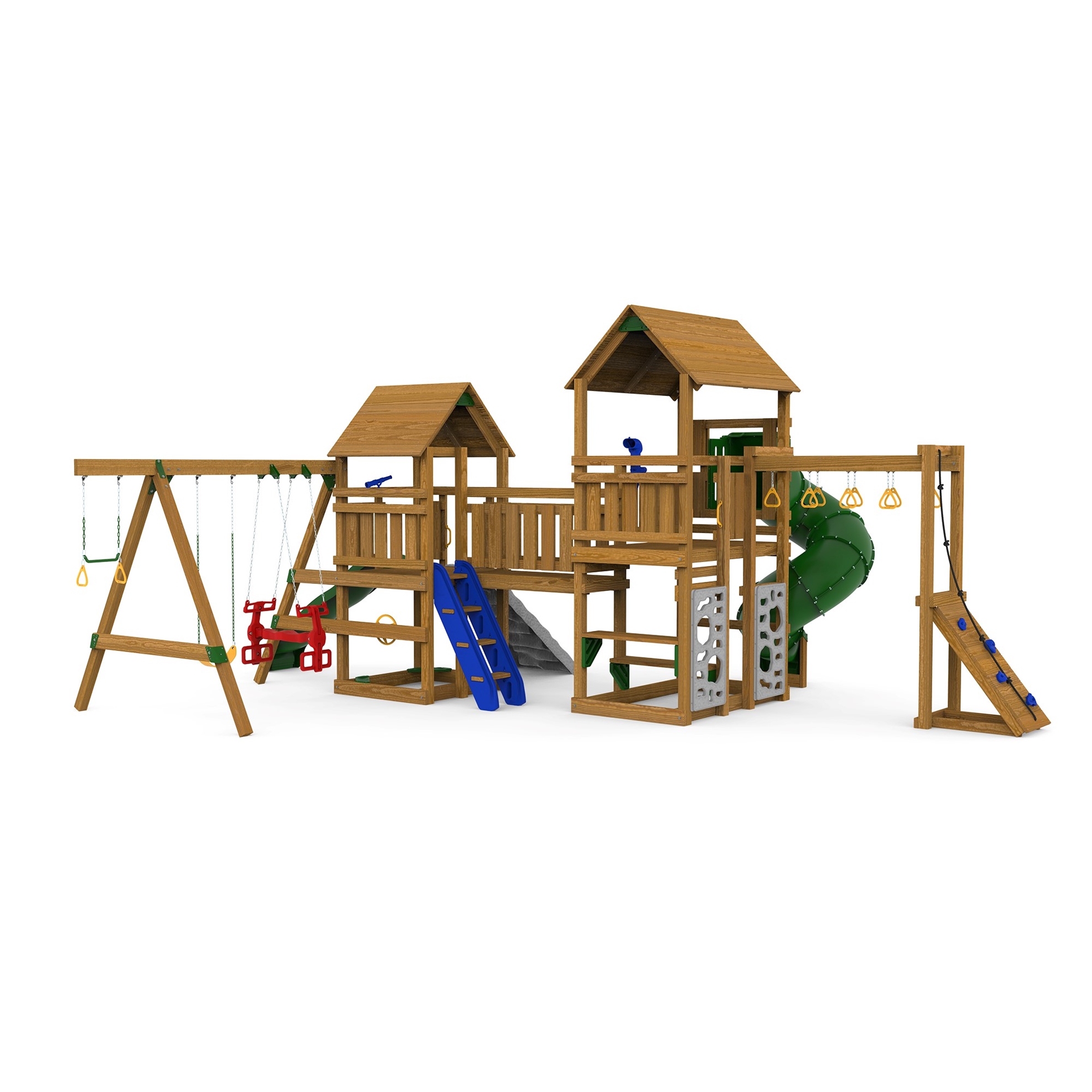

Super Star XP Gold Playset


55 Sq. Ft. of Play Deck — 26 Activities

The Super Star XP Gold Play Set includes the Super Star kit, Spiral Tube Slide, Scoop Wave Slide, Vertical Climbers (2), Climbing Wall, Climbing Steps, Air Rider, MegaScope, Trapeze Bar, Picnic Table Brackets (2), Play Handles and additional Anchors.


Super Star XP Gold - Build It Yourself

PART#: KT 77251

Lumber and Screws Approved for Outdoor Use are Purchased Separately. Additional cost from your local lumber yard is approximately $675. Estimated Building Time for 2 people is 16 to 20 hours. All PlayStar Retailers will have a complete Price for this project and may vary from what is listed below.

$1869.00

Super Star XP Gold - Factory Built

PART#: PS 73251

Estimated Set Up time for 2 people is 4 to 6 hours. The factory built wooden sets are custom built and available in approximately two weeks. If Added to Cart below freight is "curbside" delivery by contracted carriers. Product may be available from your local retailer and will ship directly to that location.

$4999.00
  • Tools & Materials
  • Reviews
  • 3D Tour
  • Playstar Difference
  • More Info & Plans
  • FAQ's

Lumber to Purchase:

4" x 4" x 10' 4
4" x 4" x 8' 13
2" x 6" x 10' 10
2" x 6" x 8' 6
2" x 4" x 10' 5
2" x 4" x 8' 29
5/4" x 6" x 10' 2
5/4" x 6" x 8' 37
Deck Screws #8 x 2 1/2" 1,302



Tools for Assembly

  • Socket Wrench
  • 7/16”,1/2” & 9/16” Sockets
  • 9/16” or Adjustable Wrench
  • Ladder
  • Measuring Tape
  • Drill/Driver
  • Phillips Head Screwdiver
  • 1/8”, 1/4” & 3/8” Drill Bit (Included in Factory Built Play Sets)
  • 3/4” & 1 1/8” Spade Bit (Not needed in Factory Built Play Sets)
  • Level
  • Hack Saw
  • Saw (Not needed in Factory Built Play Sets)
  • Saw Horses (Optional)
  • Hammer
  • Pencil
  • Tape (Not needed in Factory Built Play Sets)
  • Chalk (Not needed in Factory Built Playsets)
  • Safety Glasses
  • Square
  • Punch (Not needed in Factory Built Play Sets)
  • Metal File
  • Shovel
Current Rating:
| Write a review
Turned out great!
The plans were very easy to follow. The end result is solid. Make sure you pre-drill all the way through the board. The template puts the holes very close to the end so the wood can split. If I were to do it again, i'd buy different screws. 2.5" screws are not very long when going through a 2x into a 4x4 for strength. I purchased 3 extra brackets online so that I was able to reverse the plans. This was needed for the swingset portion. All other parts are the same.
Awesome Playset
We have a decent sized backyard and I wanted a playset that was more than just the standard tower and slide. I looked around at all the major stores and reviews ahead of time and I just wasn't crazy about the pre-stained cedar sets sold by most companies. Plus, my daughter is only one and a half so I wanted to make some temporary customization to make it safer while she is so young. I wasn't sure I would be able to get pre-stained wood to match for the customization with other kits, and a lot of reviews said the boards came in cracked. Cedar is also weighs less and maybe its just my inaccurate perception, but I felt overall it would just feel stronger using pressure treated pine. I know it will fade over time, but at least I won't have to worry about restaining ever. Now that it's built I feel it would be tough to match the strength of the pine vs. cedar. I doubt we could ever put too much weight of people on it. Some cedar sets I saw warned that max weight was 110 lb. The great thing is the plans are very flexible. We were trying to save a little bit, so we dropped some of the 'fluff' accessories that are not part of the kit as the picnic kit, megascope, and a simpler swing (these accessories might be future birthday presents). We also changed the tube slide to be the giant wave slide (that part required a little customization on the frame, but it was pretty easy as long as you buy a slide the fits the same deck size). That saved us probably $500 and made it an easier choice to buy this over a smaller set. The plans are awesome. Everything is broken into small steps. The cutting guide is awesome to make the rest of construction easier by doing that all first. Total construction took about 30 man hours for me, and if you want all your screws to be positioned uniformly and use the screw guide to mark where every screw goes it would probably take closer to the estimated 40 hours. I built the vast majority by myself with clamps to help hold, but you will need 2 more people to help flip up each tower and for some of the steps for the swing set. Keep in mind that this is a big playset and you need a good amount of space to put it. Measure before buying! Also, I hauled the lumber home on an 18ft trailer. If you have anything smaller, plan on two trips or you might have too much weight. This would not all fit in a pickup truck! There is a lot of wood in this. Plans are amazingly efficient and I had less then two 5 gallon buckets of scraps when I was done. This was the first time I ever built something big without someone more handy than me helping and it went great. If you can use basic tools and read easy plans, you can handle this set! When its finished it is one cool playset.

Click & Drag to Complete your Tour

The PlayStar Wooden Swing Set Difference

All PlayStar playground equipment is designed to enhance your child's physical development and social skills. It is thoroughly tested in technical and real world situations to assure your family many years of enjoyment and satisfaction.

A Leader in Playset SAFETY

We subscribe to the strictest standards of residential play ground equipment. We are an active member of the American Society for Testing and Materials (ASTM). We meet All United States C.P.S.C. (Consumer Products Safety Commission) Safety Requirements. All PlayStar Swing Sets feature:

No protrusions or entrapments

Guardrails on all slide and climber openings to protect children from potential falls

Wider swing spacing to avoid accidental body contact

Safe, Spacious non-conflicting play zones

Patented Third Leg on all Swing Beams at Tower to Add Stability.

Swing areas limited to two activities between posts for safe exit and entry

QUALITY Our Wooden Swing Sets are Built to Last

PlayStar DIY playground equipment include exclusive, patented products, heavy-duty hardware and high-density polyethylene playset accessories. Your backyard play equipment will stand the test of time because:

Seats are manufactured for superior strength, flexibility and comfort without sharp chains underneath needed for support

Chains are made from welded links for maximum strength and rubber coated for a no-pinch grip. Will not peel or allow water to penetrate like chains with a sleeve

Swing hangers are dual fastening and fasten through two separate boards in swing beam for added security

Hardware that is demonstrably thicker, 42% stronger and hot dipped galvanized to prevent corrosion or failure

Swing set Accessories are larger, more durable and designed specifically to fit children ages 2 to 10 and to withstand the rigors of outdoor backyard play.

Value and Customer Satisfaction

Shop and compare. We are confident you will love our home playground equipment. Consumer Surveys consistently award PlayStar 99% Customer Satisfaction ratings.

PlayStar provides the geatest number of activities and play deck space for your investment. We are the only swingset manufacturer to offer 3 distinct Play Systems for your individual lifestyle. Each has a Full Ten-Year Warranty.



This product has been extensively test for:

(Click on any of the Icons to learn more)

PS 73251 & KT 77251 SUPER STAR GOLD

Ground to Peak Dimensions: front - 10 ft
back - 12 ft
Ground to Top of Deck Dimensions: front - 4 ft
back - 5 ft
Play Deck (sq ft): 55
Approx Play Deck Dimensions (ft): front - 4 x 4
back - 4 x 6
tube slide - 2 x 1
bridge - 1.75 x 5
picnic table/bench - 4 x 1
Swing Beam Length/Height: 10'/86.25"

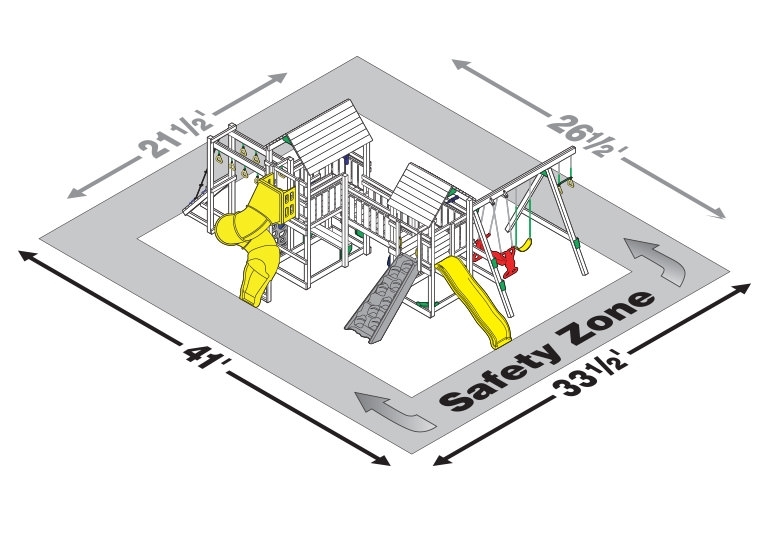

Playset Size (w x d) Ft: 21.5' x 26.5'
Approx Safety Zone Dimensions (w x d): 33.5' x 41'
Cubic Yards of Shock Material: 51
Shock Material Depth (in): 12

What type of wood (purchased seperately) do you recommend for this playset?

Any wood approved for outdoor use.   We use Southern Yellow Pine in all of the PlayStar Factory Built and Ready to Assemble Playsets.  Independent studies have proved that it is much stronger than Cedar or Fir.  In fact, Over 70% stronger than Chinese Cedar (Fir) as documented across a variety of metrics by testing laboratories.

Have a question of your own?

Please feel free to click below or call us at 1-888-PLAYSTAR (752-9782) where you will be greeted by a live voice.
